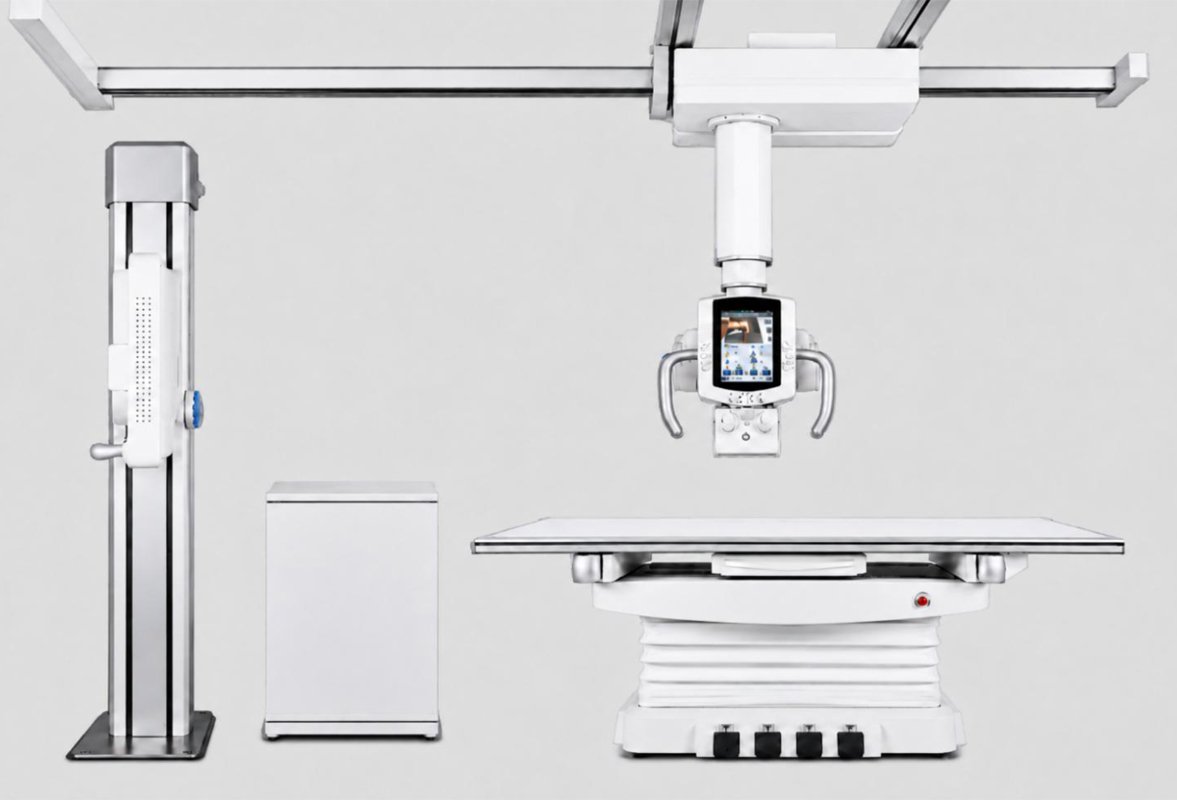

DIGI 800HF
Ceiling Suspended DR System – Dual Detecto
- 80 kW, 300 kHz X-Ray Generator, 9.7” touch tube head console
- Rotating anode X-Ray tube, 0.6/1.2mm focal spot, 300kHU
- 40 – 150 kVp & 800 mA
- Ceiling Suspended, Auto Tracking,Auto Positioning, 6-Way table
- CsI, a-Si TFT, 17” ×17“, 16-bit, 3072 × 3072, 139 µm (Fixed / Wireless)
- 24” LCD Workstation, i5 Processor, DICOM 3.0, PACS Connectivity
- 440 V AC ±10%; 50Hz, 3-Phase Input Power Supply
- AEC / DAP Options
Enquire us

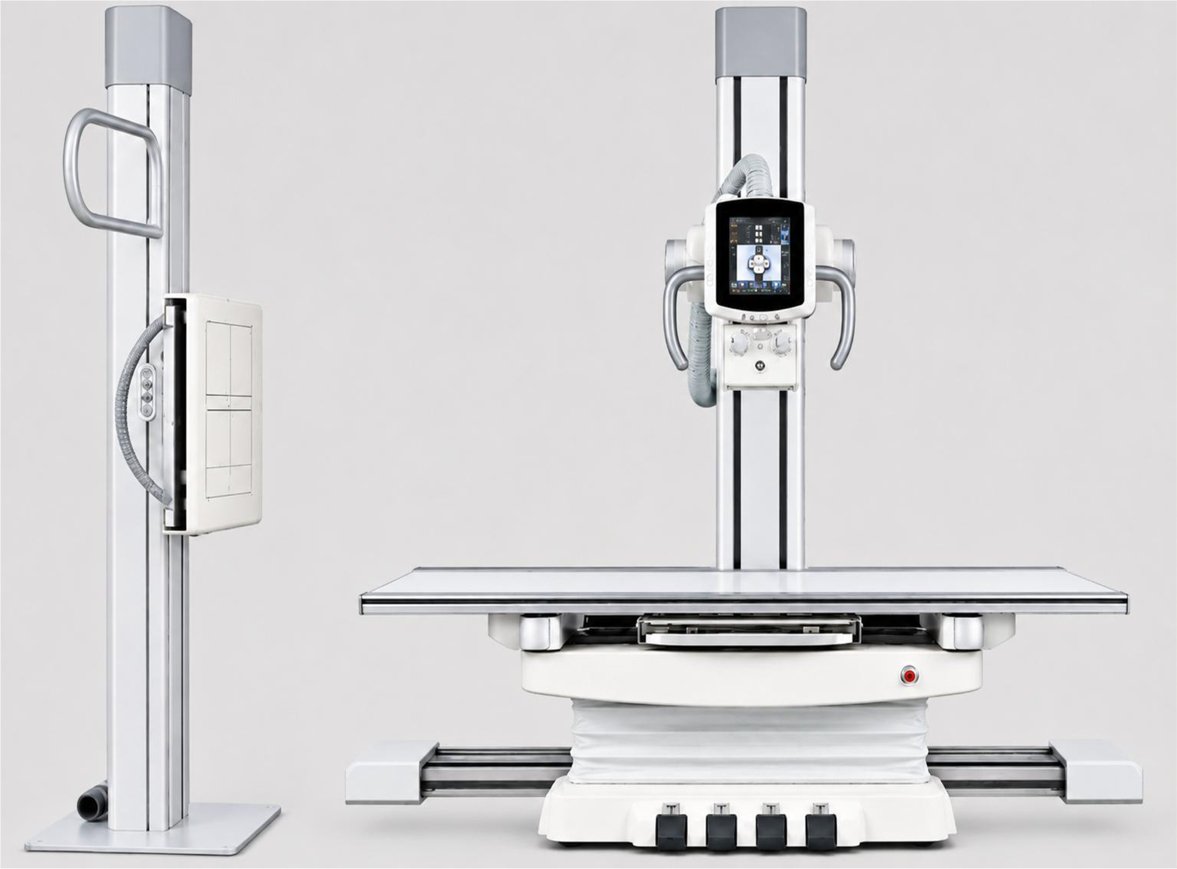

DIGI DR Plus
Floor Mount DR System – Dual Detector
- 52 kW, 300 kHz X-Ray Generator, 10.1” touch tube head console
- Rotating anode X-Ray tube, 0.6/1.2mm focal spot, 300kHU
- 40 – 150 kVp & 500 mA
- Floor Mount Stand, Wall bucky stand, Motorized, 4-way / 6-way Table
- CsI, a-Si TFT, 17” ×17“, 16-bit, 3072 × 3072, 139 µm (Fixed / Wireless)
- 24” LCD Workstation, i5 Processor, DICOM 3.0, PACS Connectivity
- 440 V AC ±10%; 50Hz, 3-Phase Input Power Supply
Enquire us

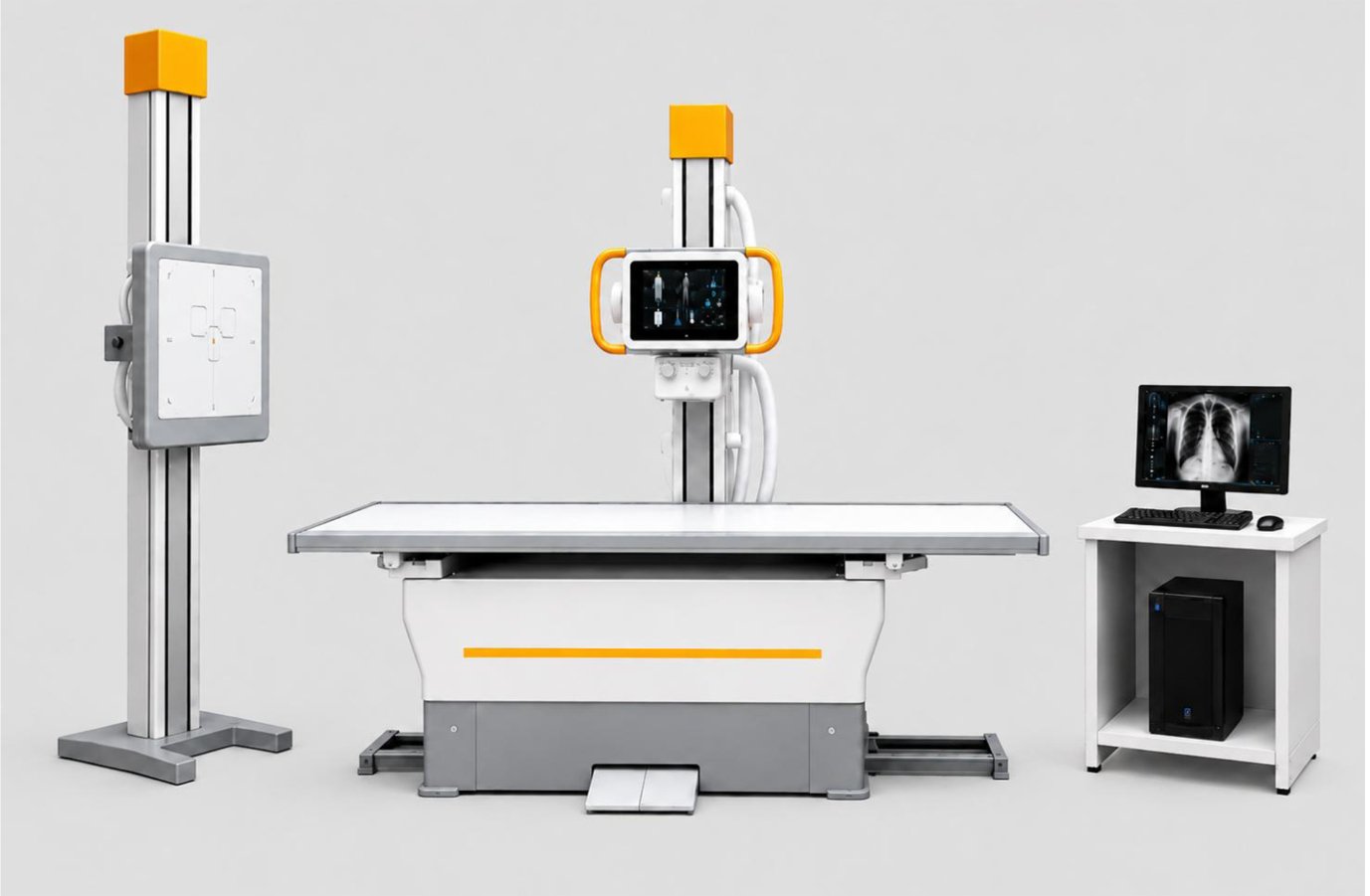

DIGI HF / 500HF
Floor Mount DR System – Dual Detector
- 40 / 52 kW, 300 kHz X-Ray Generator, 10.1” touch tube head console
- Rotating anode X-Ray tube
- 40 – 125 kVp & 500 mA
- Floor Mount Stand with EM Locks, Wall bucky stand, 4-way / 6-way Table
- CsI, a-Si TFT, 17” ×17“, 16-bit, 3072 × 3072, 140 µm (Fixed / Wireless)
- 24” LCD Workstation, i5 Processor, DICOM 3.0, PACS Connectivity
- 440 V AC ±10%; 50Hz, 3-Phase Input Power Supply
Enquire us

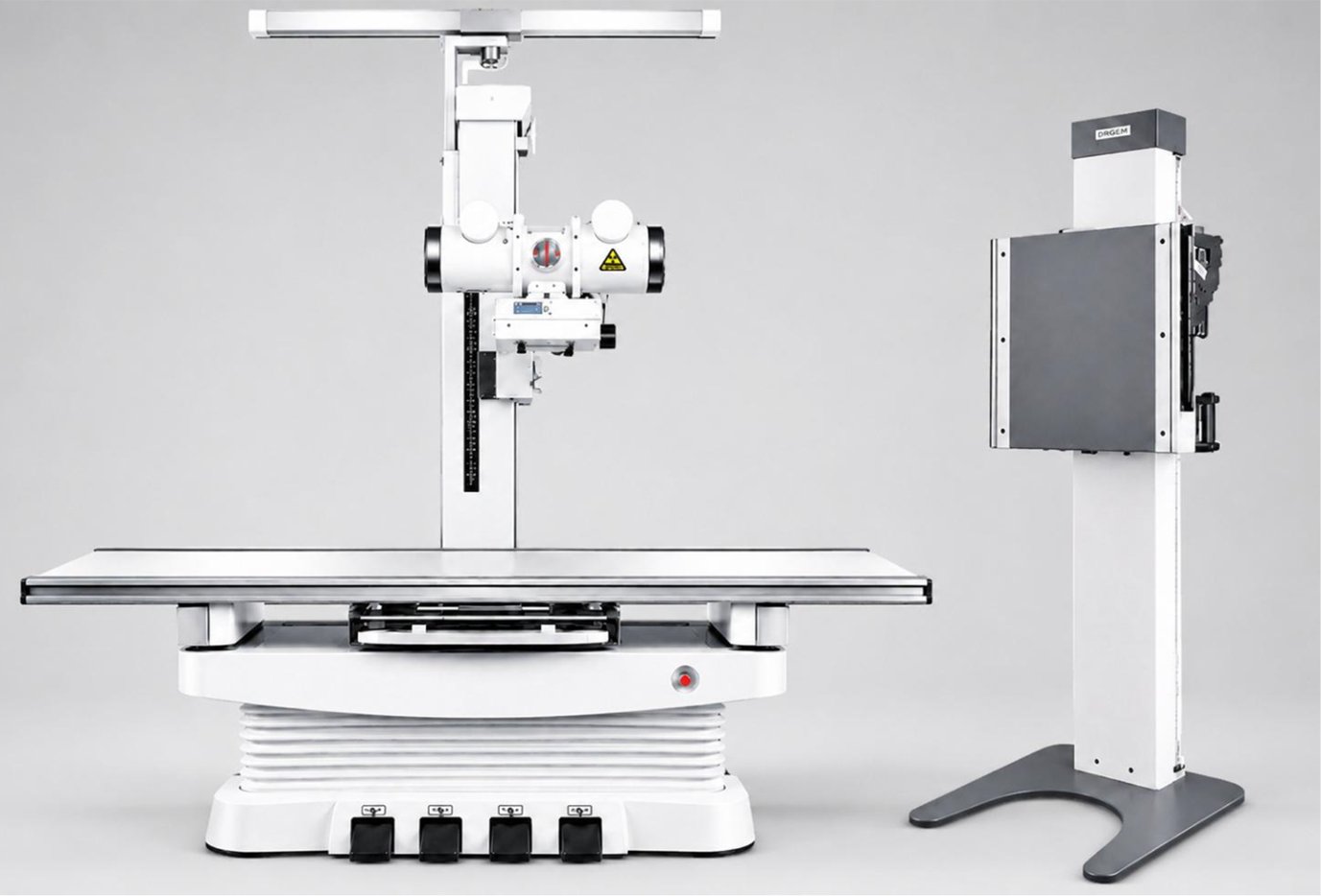

DIGI 15 / 32
Floor Mount DR System – Single Detector
- 15 / 32 kW, 300 kHz X-Ray Generator
- Rotating anode X-Ray tube
- 40 – 125 kVp & 300 mA
- Floor Mount Stand with EM Locks, Detector stand, Mobile table
- CsI, a-Si TFT, 17” ×17“, 16-bit, 3072 × 3072, 140 µm (Fixed / Wireless)
- 24” LCD Workstation, i5 Processor, DICOM 3.0, PACS Connectivity
- 440 V AC ±10%; 50Hz, 3-Phase Input Power Supply
Enquire us

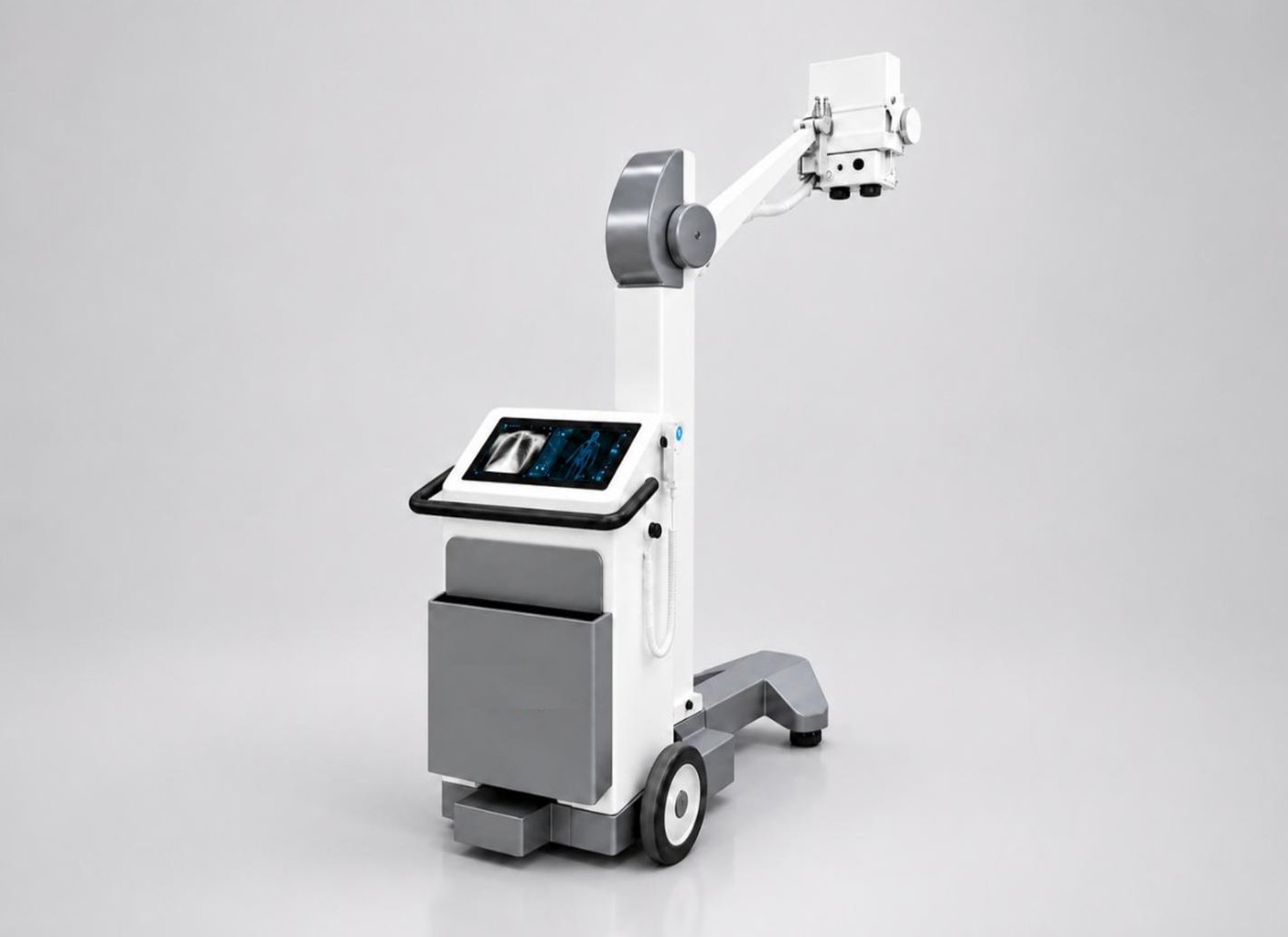

DIGI 100M HF
Mobile DR System
- 4 kW, 100 kHz X-Ray Generator
- 15.6” Touch Screen Integrated Console
- 40 – 100 kVp & 100 mA
- Stationary anode X-Ray tube
- Spring balanced Mobile design
- CsI, a-Si TFT, 14” ×17“, 16-bit, 2560 × 3072, 140 µm, IP65 FPD
- 220 V AC ±10%; 50Hz, single phase Input Power Supply
Enquire us

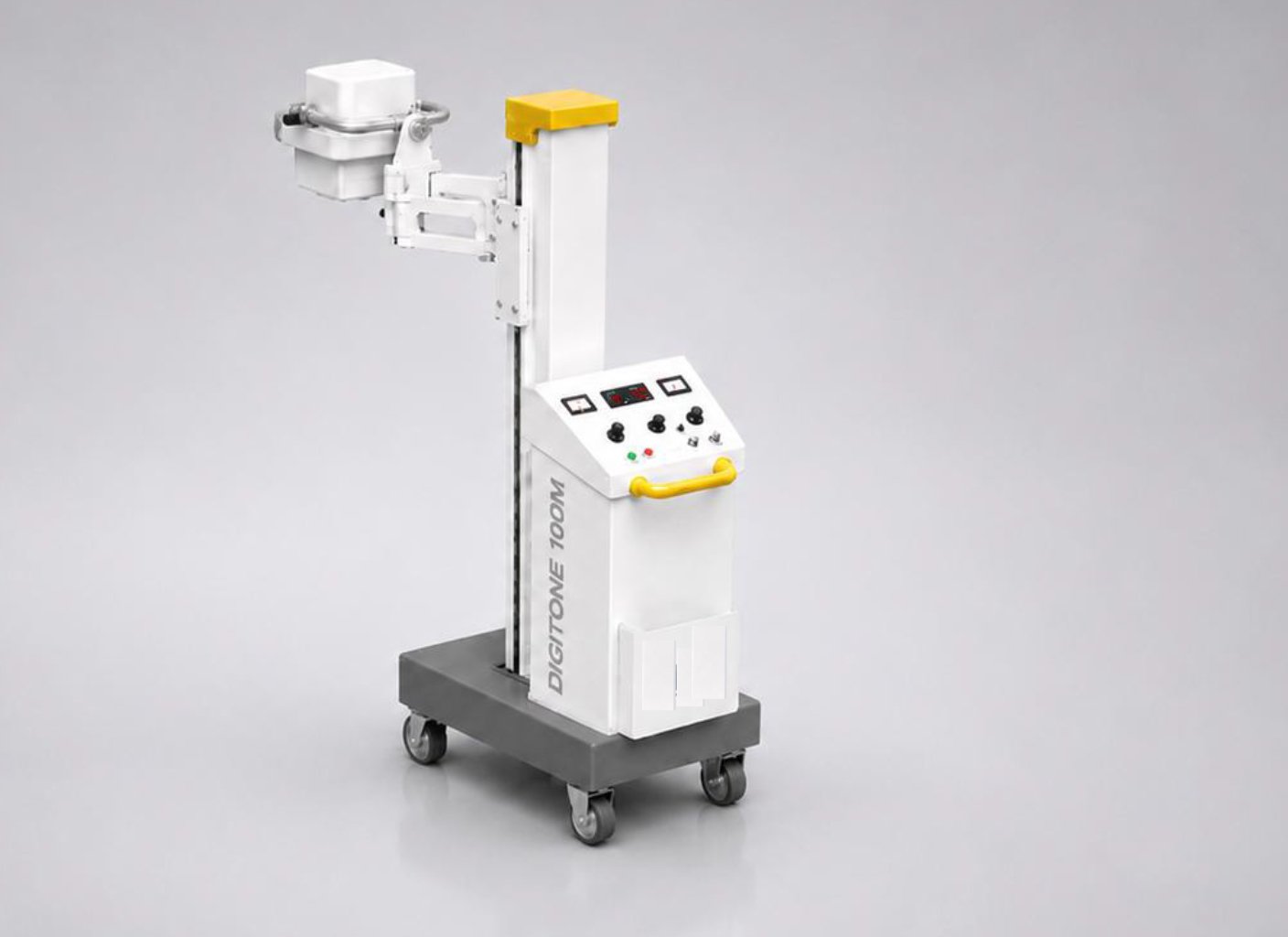

DIGI 100M
Mobile High Frequency X-Ray
- 8 kW, 100 PPS X-Ray generator
- 40 – 100 kVp & 100 mA
- Stationary anode X-Ray tube
- Counter balanced Mobile design
- Articulated Arm Assembly for easy positioning
- Automatic overload protection
- 220 V AC ±10% Single Phase Input Power Supply
Enquire us
DIGI 300
Mobile High Frequency X-Ray
- 24 kW, 100 PPS X-Ray generator
- Display of kV & mAs
- 40 – 100 kVp; 300 mA; 500mAs
- Rotating anode X-Ray tube
- Floor to Ceiling Tube stand
- Radiography Table: PLAN-X · FLOAT-X · MULTI-X · VB-X
- 440 V AC ±10%; 50Hz, 3-Phase Input Power Supply
Enquire us
